HN11-I101 Set for Dynamixel XL 430 series

Artikelnummer: 903-0265-000

HN11-I101 is the standard idler bearing set for Dynamixel XL 430 series. This idler bearing is connected to the opposite side of the output shaft of Dynamixel X, and can be used to assemble the hinge frame on it.

Kategorie: Servos & Motoren


5,95 €

inkl. 19% USt. , zzgl. Versand (Standard)

knapper Lagerbestand

Lieferzeit: 2 - 3 Werktage

Stk


¦ Description

HN11-I101 is the standard idler bearing set for Dynamixel XL 430 series.

This idler bearing is connected to the opposite side of the output shaft of Dynamixel X, and can

be used to assemble the hinge frame on it.

Patented hollow structure enables this set to be assembled with Dynamixels without screws.





¦ Basic Components

Items

Quantity

Bearing Set

Idler  (HN11-I101)

1

Idler Cap (DC11)

1

Screw

Bolt (PHS M3*5)

1

* Hinge frame not included

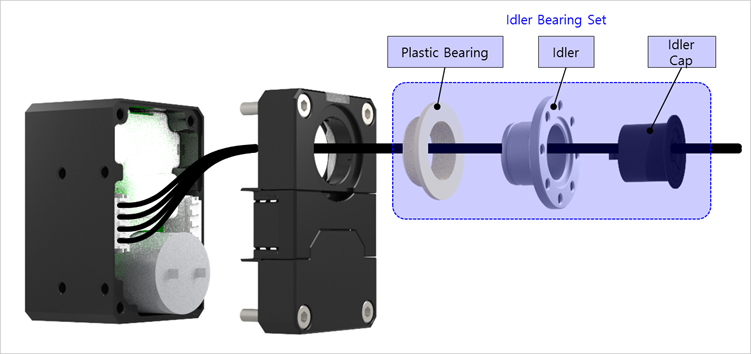

¦ Assembly







¦ Part Features



Idler : The idler is firmly assembled with Dynamixel by hooking mechanism and additional frames such as hinge can be assembled on it.



Idler Cap : The cap protects debris such as screws getting into the Dynamixel through the hollow structure.
